SIDE DUMP TRAILERS

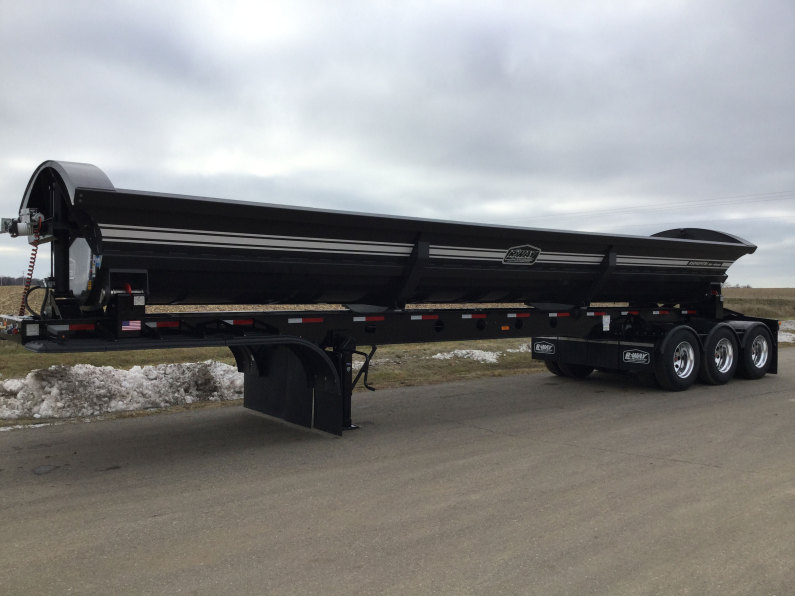

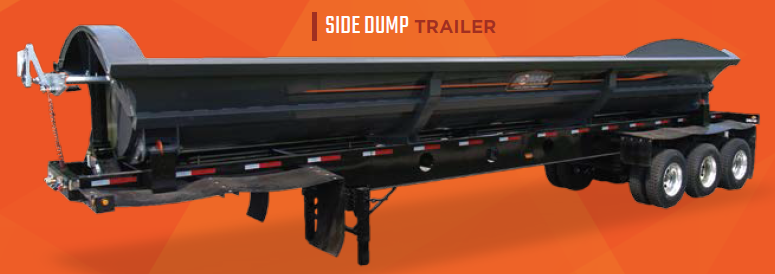

Side Dump Trailer from Krain Creek Fabrication in Long Prairie, MN

SIDE DUMP TRAILERS

R-Way Trailers is a leading manufacturer of heavy-duty dump trailers and has over thirty years of engineering and manufacturing experience. Our trailers provide dependable services across North America and with our ability to customize many options, we have been able to fit the needs of many different types of customers.
Heavy Duty Bottom Dump Trailer from Krain Creek Fabrication in Long Prairie, MN

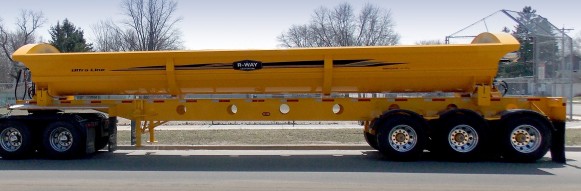

Yellow Side Dump Trailer from Krain Creek Fabrication in Long Prairie, MN
Heavy Duty Belly Dump Trailer from Krain Creek Fabrication in Long Prairie, MN
arrows R-Way Side Dump Trailers allow for smooth driver or curb side unloading capabilities using the R-Way unique counterbalancing hydraulic valve system.  Ensuring the trailer stays on the ground while dumping.
arrows Custom options are available for all models (including paint, tarp, aluminum wheels, etc.)
arrows General Info: Premium air-ride steel side dump trailer
• Standard Options include (but all are available for customization)
  • 42’ Overall Trailer Length
  • 102” Wide
  • 9’ – 8” hauling position, 11’-8” dumping height
  • 24.6 yard Maximum product capacity
• Standard 1-year limited warranty
arrows Product Specifications:
• Tub: 41-1/2” depth, side edge to bottom, made of ¼” AR400 Steel
• Frame Construction: 21” high fabricated beams made from grade 100xf high strength steel. Two tub locks each side, manually pinned
• Suspension: Haldex ABS System wired to blue wire with Haldex relay valve. Tandem, Tridem & Quad or customized axle versions available with multiple lift axle configurations
  • Hendrickson HT-250, 25,000lb suspension system standard
  • Hendrickson Auto Lift System available for third axle lift (others available upon request)
• Tires/Wheels: Twelve 22.5 x 8.25 10-hole hub piloted steel or alum wheels, Twelve 11R22.5 14-ply rated tires
• Fenders: Front and rear fenders have steel support with ¼” thick rubber belting or molded fender option
• Upper Fifth Wheel: 2” kingpin, 18” setting
• Push Block: 3/16” grade 80 with ¼” grade 80 push plate
• Electrical: Truck-Lite rubber-mounted LED lighting with USA Brand Modular wire harness
• Hydraulics: Two six-inch hydraulic cylinders, 3,000 psi. Electric operated hydraulic valve for smooth trailer unloading
• Steel Grit Blasted, Epoxy Primed and Painted with High Quality Polyurethane Paint Exterior
• Other available options:
  • Tarps
  • Custom Light packages such as strobe & work lights
  • Custom Graphics
